Core Challenge: Maintaining Reverse Osmosis System Efficiency

Method Evaluation: Reactive vs. Proactive Maintenance

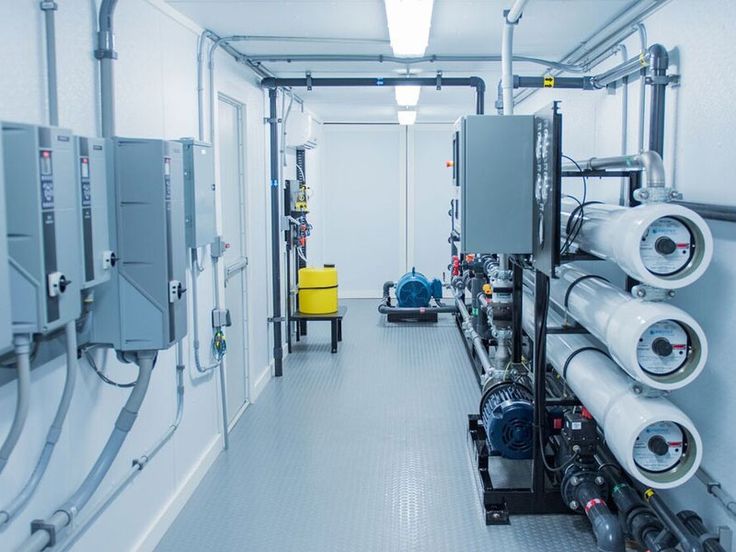

Industrial RO Protection & Process Architecture

4 Common Industrial RO Issues & Field Troubleshooting SOP

1. Decline in Permeate Flow Rate:If permeate production decreases while feed pump pressure remains constant or increases, organic fouling or biofouling is likely occurring on the membrane surface. Field Action: Evaluate the Silt Density Index (SDI) at the pretreatment outlet and execute an alkaline Clean-In-Place (CIP) wash to strip organic particulates.
2. Sudden Permeate TDS Spike:A sudden rise in permeate TDS indicates a decline in salt rejection efficiency. Field Action: Perform a probing test on the pressure vessel to check for rolled or cracked interconnector O-rings. If mineral scaling such as CaCO₃ is identified, perform an acidic CIP wash and verify antiscalant dosing continuity.
3. Excessive Differential Pressure (Delta P):A higher pressure drop between the feed and concentrate streams indicates feed spacer clogging within the membrane elements. Field Action: If Delta P increases by 15% over baseline commissioning values, schedule an immediate CIP cycle. Delaying CIP under high Delta P conditions can cause severe physical damage (membrane telescoping).
4. Gradual Feed Pressure Increase to Maintain Flow:When operators must continuously ramp up feed pump pressure to deliver nominal permeate output, thin-film mineral scaling is accumulating on the membrane array. Field Action: Temporarily reduce system recovery rate to lower salt concentration on the concentrate side, perform a acid-based descaling wash, and readjust antiscalant formulation.

Key Preventive Strategy: Daily Logsheet Discipline

• Prevent Unplanned Downtime: Detect fouling or scaling trends before system performance drops beyond the 15% threshold.
• Reduce Operational Expenses (OPEX): Extend overall element lifespan and avoid premature, expensive membrane replacements.
• Optimize Chemical Consumption: Ensure pretreatment chemical dosing and antiscalant injection rates stay precisely aligned with raw water quality variations.
